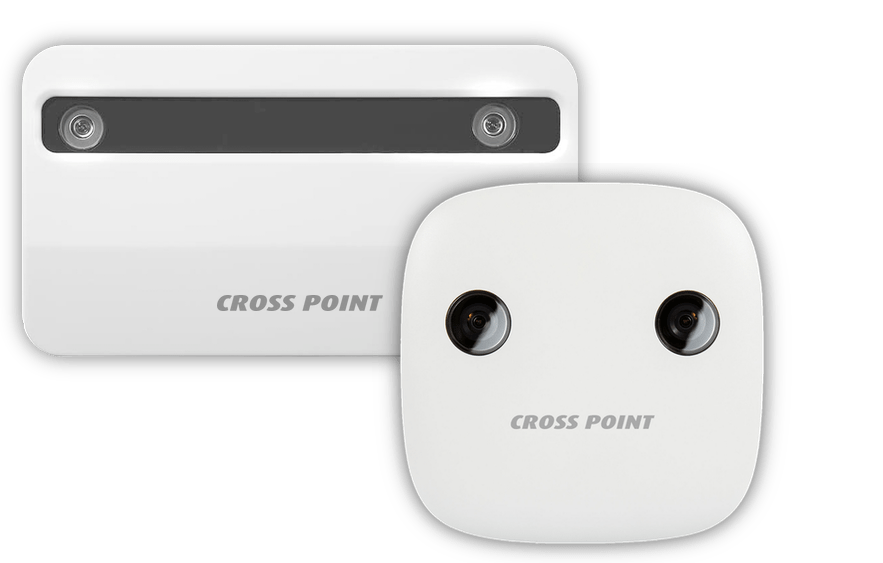

X3D Sensors

Step into the future of retail analytics with Cross Point’s advanced X3D Sensors. Wheter you choose the X3D180 or X3D90, these state-of-the-art devices offer unparralelled accuracy and actionable insights into customer behaviour. Seamlessly blending bi-directional visitor counting with dwell time analysis, these counters empower you to make data-driven decisions that enhance customer experience and boost sales.

X3D90 Sensor Cross Point Visitor Counting

**X3D90 Specifications**
Bi-directional visitor counting	✓
Maximum monitored area	Up to 5 × 6 m
Min height / Max height	2 m / 4 m
Housing	Aluminium & Plastics
Operating temperature	0°C to +55°C
Ingress protection	IP30
Dimensions (W / H / D)	160 / 160 / 42 mm
Weight	400 g
Power Supply	Power-over-Ethernet (PD class 0)
Power Consumption	< 8 W
Connectivity	1000BaseT, PoE, RJ45 socket
Required Illuminance	3 Lux
Reliability	> 10 years
Standards	EMC, CE, FCC

**X3D180 Specifications**
Bi-directional visitor counting	✓
Maximum monitored area	Up to 8 × 8 m
Min height / Max height	3 m / 6 m
Housing	Aluminium
Operating temperature	-25°C to +70°C
Ingress protection	IP40
Dimensions (W / H / D)	237 / 99 / 37 mm
Weight	600 g
Power Supply	Power-over-Ethernet (PD class 0)
Power Consumption	< 8 W
Connectivity	1000BaseT, PoE, RJ45 socket
Required Illuminance	3 Lux
Reliability	> 10 years
Standards	EMC, CE, FCC

Values & Features

Bi-directional visitor counting
Track customer movements with exceptional accuracy.
Dwell time analysis
Identify how long customers spend in key zones.
High accuracy
At least 98% accuracy, even in crowded areas.
Suppression of non-human objects
Ignore trolleys and other non-human movements.
Configurable through software
Flexible setup for your specific needs.
Multiple counting lines and zones
Up to 10 counting lines and 8 zones per sensor.
